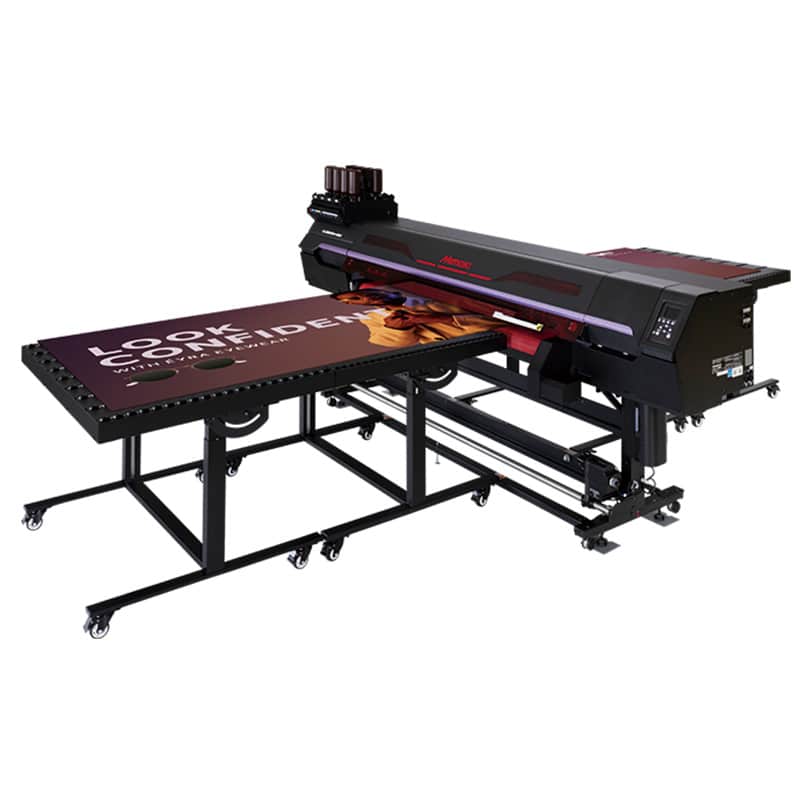

Mesin Printer Mimaki Hybrid UV UJ330H-160 adalah solusi cetak profesional yang menggabungkan teknologi UV mutakhir dengan sistem hybrid untuk mencetak pada media roll maupun rigid. Dilengkapi kualitas cetak tinggi, kecepatan produksi optimal, serta kemampuan mencetak langsung di berbagai material seperti akrilik, kayu, kaca, dan PVC. Cocok untuk kebutuhan industri percetakan skala besar yang menuntut presisi, warna tajam, dan daya tahan hasil cetak.
Spesifikasi Mesin Printer Mimaki Hybrid UV UJ330H-160:
| UJ330H-160 | |||
|---|---|---|---|
| Print Head | On-demand piezo head (2 staggered layout) | ||
| Print resolution | Y : 600, 1,200 dpi, X : 600, 900, 1,200, 1,800 dpi | ||
| Head gap | Automatic nozzle-to-media distance adjustment 1.5 mm to 3.0 mm (in 0.1 mm increments), automatically adjusted by belt elevation. |
||
| Ink | Type/Color | ELS-170 / ELS-175*1: C,M,Y,K,Lc,Lm,W,Cl LUS-210*1: C,M,Y,K,W |
|
| Capacity | 1L bottle | ||
| Maximum print width | 1,610 mm (63.4″) | ||
| Media (Roll) |
Supported width | 210 ~ 1,620 mm (8.3 ~ 63.8″) | |
| Roll diameter | φ250 mm (9.8″) or less | ||
| Roll weight | 45 kg (99 lb) or less | ||
| Core diameter | 2 inch / 3 inch | ||
| Take-Up Torque Limiter | Standard Setting: Low (adjustable from Low to High) | ||
| Media (Rigid) |
Supported width | 210 ~ 1,620 mm (8.3 ~ 63.8″) | |
| Supported length | 280 mm ~ 2,500 mm (11″ ~ 98.4″) Control allows up to 3,100 mm (122.0″), Print length: up to 3,090 mm (121.7″) *2 |
||
| Thickness | 50.8 mm (2″) or less | ||
| Weight | 25 kg (55.1 lb) or less (7 kg (15.4 lb)/m² or less) | ||
| Automatic Adjustment | DAS2 Equipped | ||
| Interface | Ethernet 1000 BASE-T (Recommended), USB2.0 Hi-Speed | ||
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA |
||
| Power supply | Single phase AC100-120V±10% /8A or Single phase AC200-240V±10% /4A, 50/60±1Hz x2 | ||
| Power consumption | 800W x2 (Maximum), Inlet1 400W / Inlet2 500W (Average running), 4.5W or less x2 (Standby) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) Recommended temperature: 20–25 °C (68–77 °F) Dust level: General office level |
||
| Dimensions (W×D×H) *3 | Main unit: 3,225 x 785 x 1,420 mm (126.9 x 30.9 x 55.9″) Main unit + 1 Roller table set: 3,225 x 2,664 x 1,420 mm (126.9 x 104.9 x 55.9″) Main unit + 2 Roller table set: 3,225 x 4,712 x 1,420 mm (126.9 x 185.5 x 55.9″) |
||
| Weight *3 | Main unit: 386 kg (851 lb) Main unit + 1 Roller table set: 498 kg (1097.9 lb) Main unit + 2 Roller table set: 610 kg (1344.8 lb) |
||
