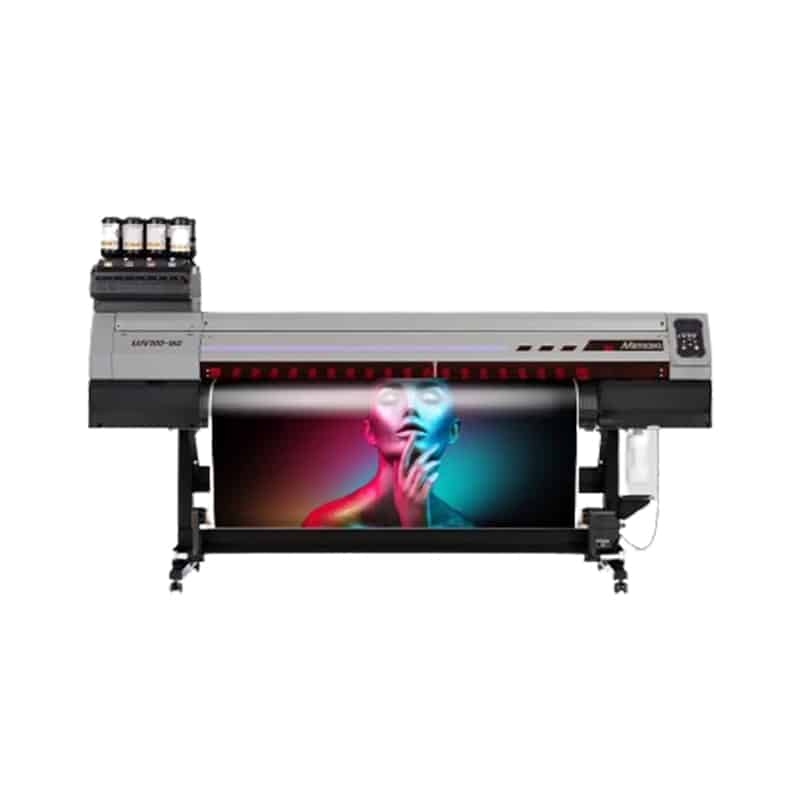

Mesin Mimaki UJV100-160 merupakan printer UV roll-to-roll profesional yang dirancang untuk menghasilkan cetakan berkualitas tinggi dengan proses produksi lebih cepat dan efisien. Menggunakan teknologi UV LED modern dari Mimaki, mesin ini mampu mencetak dengan warna tajam, detail presisi, serta hasil yang langsung kering setelah proses printing.
Spesifikasi Mesin Second UV Mimaki UJV100-160:
| UJV100-160 | ||
|---|---|---|
| Print head | On-demand piezo head (2 staggered layout) | |
| Print resolution | 360 dpi, 720 dpi, 900 dpi, 1200 dpi | |
| Ink | Type/ Color | UV-curable ink LUS-170 (C, M, Y, K, W, Cl) UV-curable ink LUS-210 (C, M, Y, K, W, Cl) |
| Capacity | 1L bottle | |
| Maximum print width | 1,610 mm (63.4 in) | |
| Media | Maximum width | 1,620 mm (63.8 in) |
| Thickness | 1.0 mm or lower | |
| Roll diameter | φ250 mm or less | |
| Roll weight | 45 kg or less | |
| Roll inside diameter | 2 inch / 3 inch | |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, ENERGY STAR®, EAC, RCM |
|
| Interface | USB2.0 / Ethernet 1000BASE-T | |
| Power supply | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz | |
| Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) |
|
| Dimensions (W×D×H) | 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in) | |
| Weight | 167 kg (368.2 lb) | |
