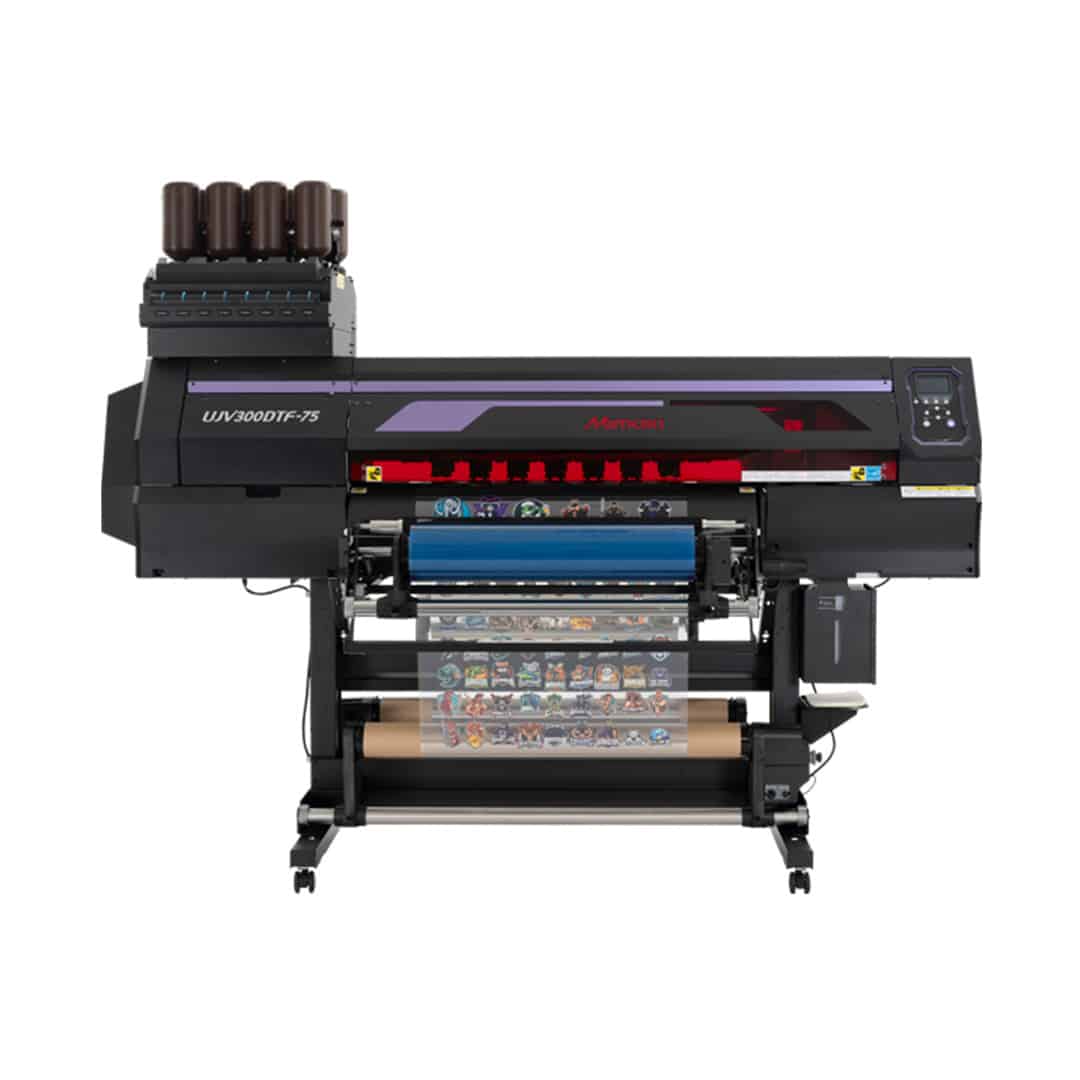

Maksimalkan produktivitas dan kreativitas bisnis percetakan Anda dengan Mesin UV DTF Mimaki UJV300DTF-75 – inovasi terbaru dari Mimaki yang menggabungkan teknologi cetak UV dengan sistem DTF (Direct to Film). Mesin ini dirancang khusus untuk menghasilkan cetakan berkualitas tinggi dengan warna tajam, detail presisi, dan daya tahan luar biasa.
Dengan lebar area cetak hingga 75 cm, UJV300DTF-75 mampu mencetak berbagai desain pada film transfer UV yang dapat diaplikasikan ke permukaan datar seperti kayu, kaca, akrilik, logam, plastik, dan banyak lagi. Mesin ini sangat cocok untuk kebutuhan cetak custom merchandise, label premium, dan dekorasi produk.
Spesifikasi Mesin UV DTF Mimaki UJV300DTF-75:
| UJV300DTF-75 | ||
|---|---|---|
| Print head | On-demand piezo head | |
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi | |
| Ink | Type/Color | UV curable flexible ink ELS-170 (C, M, Y, K) UV curable hard ink ELH-100 (White, Clear) |
| Capacity | 1L bottle | |
| Ink circulation system | Available only for white ink | |
| Max. print width | 640 mm (25.2 in) | |
| Media | Max. width | 650 mm (25.6 in) |
| Roll diameter | φ250 mm (9.8 in) or less | |
| Roll weight | 45 kg (99.2 lb) or less | |
| Interface | USB2.0 / Ethernet 1000 BASE-T | |
| Certifications | VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive and RoHS) / CB / REACH / Energy Star / RCM / KC |
|
| Power supply | Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 | |
| Power consumption | AC100V: 1.44kW or less / AC200V: 1.92kW or less | |
| Operational environment | Temperature: 20-30 degC / 68-86 degF Humidity: 35-65% Rh (Non condensing) |
|
| Dimensions (W×D×H) | 2,090 x 930 x 1,475 mm (82.3 x 36.6 x 58.1 in) | |
| Weight | 180 kg (396.8 lb) | |
